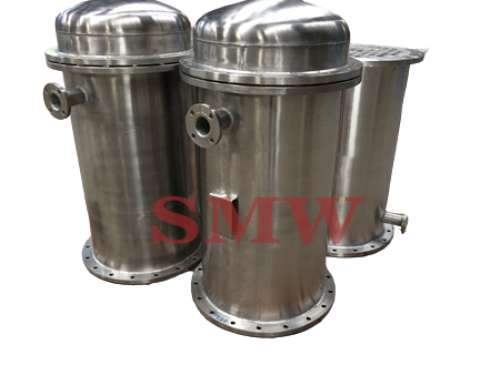

Understanding Heat Exchanger For Dyeing Machine

Heat exchangers are vital elements in every process plant. While there are several additional important types of exchangers, the majority of them are the shell-and-tube type. The major categories of heat transfer equipment are:

• Shell-and-tube
• Finned tube
• Bare tube
• Plate-and-frame
• Spiral
• Plate coil

To understand the concept ofheat exchanger for dyeing machines, let us understand the anatomy of a dyeing machine first. The main features of the dyeing machine are:

1. The fabric, which remains in rope form in the dyeing machine during the dyeing process.
2. Heating and cooling of the dyebath, performed by the heat exchanger.
3. Additions (chemicals and dyestuffs), added through the feeding container.

Impact Of Heat Exchanger For Dyeing Machine

The dyeing process involves the use of high temperatures for bleaching, dyeing, and hot rinsing. The heat exchanger for dyeing machines provides these hot temperatures by heating the dye bath using steam. The high-temperature discharge (or hot waste water) would consist of all waste water from the dyeing machine having a temperature of 700C to 980C. It can be used to preheat the freshwater from the water mains, through a heat exchanger, before it is used for the dyeing purposes. On average, through 24 hours and taking into consideration that there are no significant changes in dyed fabric color, the amount of hot wastewater going into the heat exchanger would be equal to the amount of freshwater passing through it.

The heat exchanger for dyeing machines influences the overall system size and system efficiency The heat exchanger designs must balance between pressure drop and heat exchanger effectiveness to achieve the desired tradeoff between system size system efficiency. This tradeoff between system efficiency and system size varies with each energy conversion system application.
